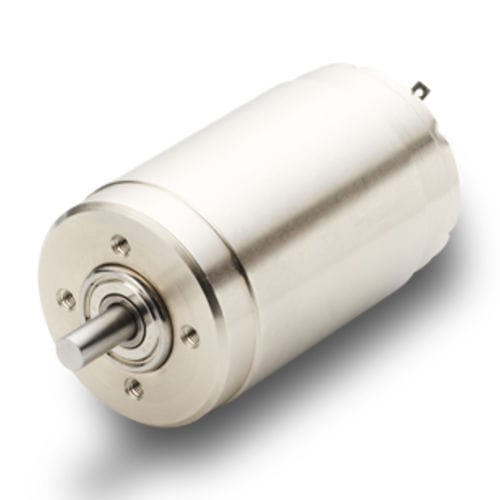

High-efficiency motor 35NT2R82 seriesDCbrushed18 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 18 V, 28V, 32V, 60 V
- Configuration
- permanent magnet, ironless, compact
- Applications
- for medical equipment, for conveyors, for power tools
- Other characteristics
- custom, high-efficiency, high-power
- Power
91 W, 102 W, 103 W, 107 W
(0.124 hp, 0.139 hp, 0.14 hp, 0.145 hp)- Intensity
1.19 A, 2.2 A, 2.6 A, 4.4 A
- Torque
0.097 Nm, 0.108 Nm, 0.109 Nm, 0.114 Nm
(0.0715 ft.lb, 0.0797 ft.lb, 0.0804 ft.lb, 0.0841 ft.lb)- Rotational speed
9,000 rpm
(56,548.67 rad.min-1)- Diameter
35 mm
(1.38 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -30 °C
(-22 °F)
Description
The 35NT2R82 brush DC motor offers high power density combined with graphite/copper commutation to achieve high acceleration with long brush lifetime. It can perform up to 150 mNm continuously and reach up to 85% efficiency.
Product Highlights
> Ironless construction
> Neodymium magnet for high performance
> High power density package
> Graphite/copper commutation
> Long brush life
> Compact design
> Winding possibilities
> High acceleration
> Low self heating
Customization Available
> Cable or terminal outputs
> Coil modifications - resistance and inductance
> Custom shafts - flats, knurling, diameter, length
> Fixation holes
> Sleeve or ball bearings
Applications
> Clinical Diagnostics
> Power Hand Tools
> Seat Actuation
> Conveyors
