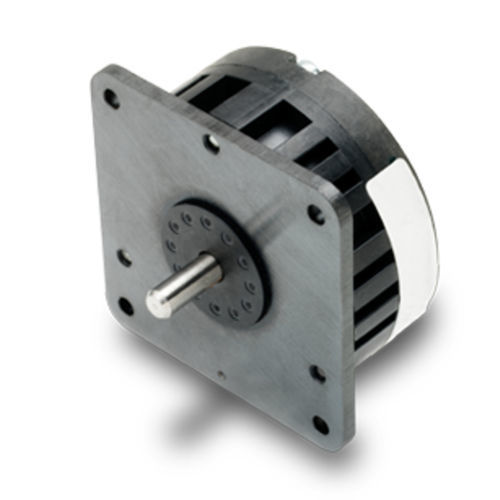

Stepper motor P520 series

DCdisc magnetsmall

Portescap disc magnet motors provide exceptional dynamic performance unparalleled by any other small diameter stepper in the market. The unique thin disc magnet enables finer step resolutions in a given envelope, significantly higher acceleration and greater top speed than conventional steppers. Product Highlights • Precise - well suited for microstepping • Fast - disc magnet enables fastest acceleration and highest top speed of any step motor while maintaining accurate positioning • Unique - low detent torque and highly customizable • Adaptable - higher steps per revolution than similar diameter steppers Customization Available • Coil modifications - resistance and inductance • Custom shafts - flats, knurling, diameter, length • Encoders for position verification • Gearheads for increased torque • Lead screw shafts • Sleeve or ball bearings • Wiring - connectors, lead length, shrink tubing Applications • Clinical Diagnostics • Textile Yarn Guide • Pick & Place • Laser Cutters • Wire Cutting - EDM
