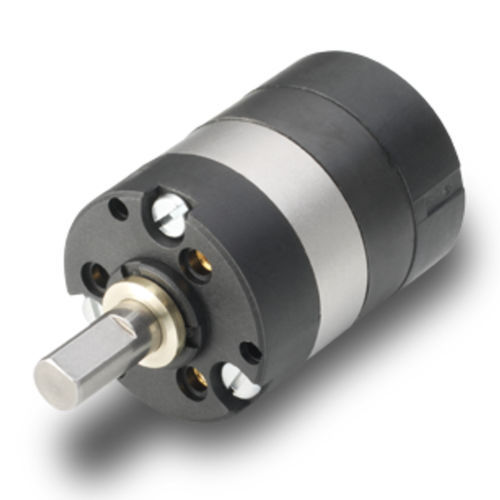

Planetary gearhead R22 seriescoaxialsolid-shaft0.5 - 1 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 0.5 - 1 Nm
- Configuration
- compact, miniature
- Number of stages
- single-stage, three-stage, two-stage, four-stage
- Performance
- high-precision, high-torque, low-backlash
- Rotational speed
5,000 rpm
(31,415.93 rad.min-1)- Backlash
1.5 °, 3 °
- Gear ratio
Min.: 5.75 unit
Max.: 1,090 unit
- Weight
20 g, 25 g, 30 g, 33 g
(0.71 oz, 0.88 oz, 1.06 oz, 1.16 oz)
Description
Our R22 is a full plastic gearhead designed with a planetary arrangement for applications requiring high torque in a relatively smaller package. Due to its lower backlash feature, it is ideally suited for precision motion requirements in various applications. Along with the planetary geartrain benefits, its unique bearing system provides good strength for applications that have higher radial loads.
Product Highlights
- For additional ratios, please download the specification pdf from the resources tab below
- High-precision performance at a competitive price point
- Compact design
- Customization as per application needs
- Sleeve and ball bearings options available
