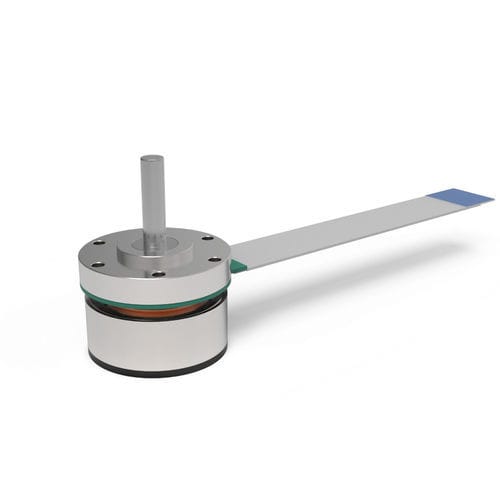

3-phase motor 20ECF seriesBLDC6 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- BLDC
- Voltage
- 12 V, 6 V
- Configuration
- aluminum, external rotor, slotted, compact, flat
- Number of poles
- multipole
- Applications
- industrial, for medical equipment, for robotics
- Other characteristics
- high-power
- Power
9 W
(0.012 hp)- Intensity
0.7 A, 1.5 A
- Torque
0.009 Nm
(0.0066 ft.lb)- Rotational speed
10,000 rpm
(62,831.85 rad.min-1)- Diameter
20 mm
(0.79 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)
Description
The 20ECF Brushless DC Flat Slotted Motor utilizes an outer rotor configuration with an overall body length of 14mm. This motors provides a torque output up to 9 mNm. This performance optimized design delivers excellent high power density, smooth output torque in a compact package, and overall lower motor mass.
> 14-pole design
> Overall weight of only 15 gms
> Sensored and sensorless versions available
> 3-Phase BLDC
Customization Available
> Connectors
> Custom shafts - flats, knurling, diameter, length
> Coil modifications - resistance and inductance
> Different optimization (speed or direction)
> Without hall sensors
Applications
> Cockpit Flight Controls
> Electric Grippers
> Electric Grippers for Robotics
> Lab Automation
> LiDar (Light Detection and Ranging)
> Rotary Tattoo Machine Motors
> Service Robots
> Surgical Robots
> Valve Actuation
> Window Shades
