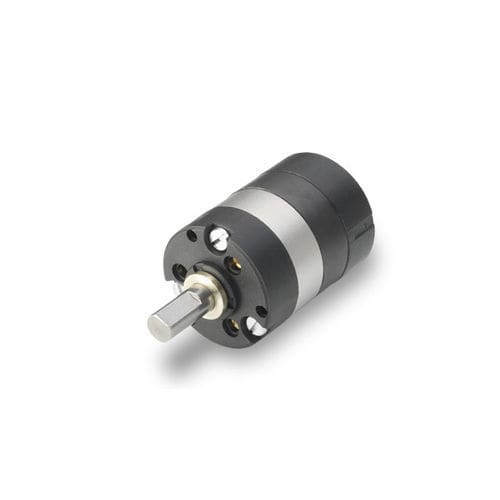

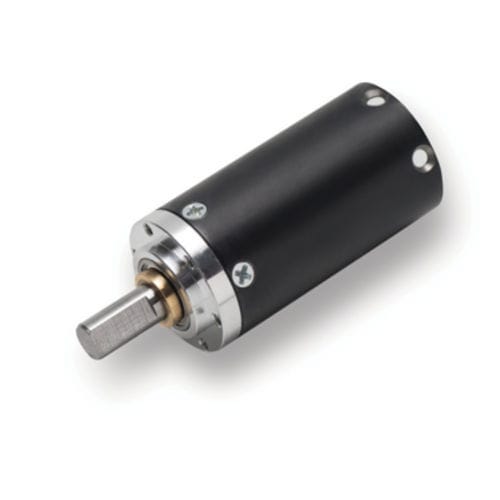

Planetary gearhead R22T seriescoaxialsolid-shaft1 - 5 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 0.1 - 0.2 Nm, 0 - 0.1 Nm
- Configuration
- compact
- Number of stages
- single-stage, three-stage, two-stage
- Performance
- high-precision
- Applications
- for power tools, for actuators
- Other characteristics
- custom
- Rotational speed
6,000 rpm, 8,000 rpm
(37,699.11 rad.min-1, 50,265.48 rad.min-1)- Power
5 W, 10 W, 15 W
(0.01 hp, 0.01 hp, 0.02 hp)- Backlash
1 °, 1.2 °, 1.6 °
- Gear ratio
5.4 unit, 14.1 unit, 29.2 unit, 52.7 unit, 157.5 unit
- Weight
40 g, 52 g, 66 g
(1.41 oz, 1.83 oz, 2.33 oz)
Description
The R22T gearhead features a full metal gearbox design with optimized gearings. Providing torque up to 1.5 Nm, the R22T gearbox is optimized to generate lower body heat while increasing efficiency, life and safety factors. This compact gearhead offers low cost of ownership making it ideal for hand-operated applications.
Product Highlights
- Stages available: 1st, 2nd, 3rd, 4th
- Compatible with Portescap's Brush DC & BLDC slotless motors
- Design optimized for lower heating
- High-precision performance at a competitive price point
Customization as per application needs
- Custom shafts - flats, knurling, diameter, length
- Mechanical integration upon request (housing, front & rear flange, shaft)
- Special lubricants
- Fixation holes
Applications
- Electric Grippers for Robotics
- Flight Control Systems
- Powered Screwdrivers
- Power Hand Tools
- Pruning Shears
- Robotic Applications
- Window Shades
