CO2 laser marking and engraving machine CapsMark

plasticwoodfor plastics

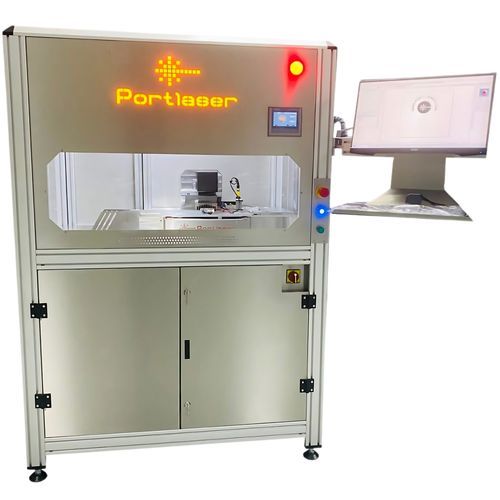

The Caps Mark is a laser workstation designed for the precise engraving and marking of wooden and plastic capsules. Equipped with a CO2 laser, available in power options from 30W to 55W. The Caps Mark delivers accurate engravings on capsules with diameters ranging from 26 mm to 58 mm and heights from 12 mm to 24 mm. Its high-performance galvanometric heads enable engraving on both the tops and/or bodies of the capsules, offering companies greater versatility in product customization and enhanced market differentiation. Main features • Sealed RF CO2 Laser with 30 to 55W of power; • MTBF exceeding 40,000 hours; • High-performance galvanometric head; • Capsule diameters: 26 mm to 58 mm; • Capsule heights: 12 mm to 24 mm; • Automatic adjustment of all axes (electrical); • Optional side engraving capability (with an optional second laser). • Dedicated software compatible with the Windows operating system, supporting the import of PLT, AI, DXF, BMP, PCX, TIFF, JPEG, PNG, DWG, and other file formats; • TCP/IP and Profinet communication; • Capable of operating in Standalone mode; • Class 1 certification.
