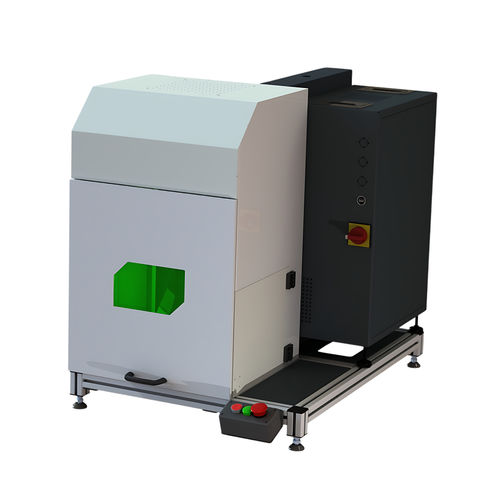

Fiber laser marking and engraving machine FIBER MARK PRO 3

for metalplasticsair-cooled

The Fiber Mark Pro 3 is a fully enclosed fiber laser machine that delivers the flexibility required for engraving and marking metals and plastics. Equipped with an extremely fast Ytterbium fiber galvanometric laser, this machine ensures high-quality and durable results coupled with exceptional productivity. It features a software-controlled automatic Z-axis, which guarantees precision and ease of use during operation. With its cost-effective and compact design, it is ideal for any company seeking an efficient and reliable solution. Main features • Ytterbium fiber laser with power ranging from 20W to 100W. • Marking areas of 70x70mm, 110x110 mm, 175x175 mm, 240x240 mm; • High speed and precision; • MTBF over 100,000 hours; • Automatic Z-axis controlled by software; • Side doors allowing the processing of long objects for engraving; • Compact and cost-effective system; • Low maintenance needs; • Dedicated software compatible with the Windows operating system, supporting the import of PLT, AI, DXF, BMP, PCX, TIFF, JPEG, PNG, DWG, and other file formats; • TCP/IP and Profinet communication; • Capable of operating in Standalone mode. • Supports “Mark On The Fly” functionality. • Class 1 certification; • Air or water cooling (depending on power). Ideal for engraving logos, QR codes, serial numbers, expiration dates, patterns, etc.
