CO2 laser marking workstation CMARK INDEX

for plasticsfor woodfor caps

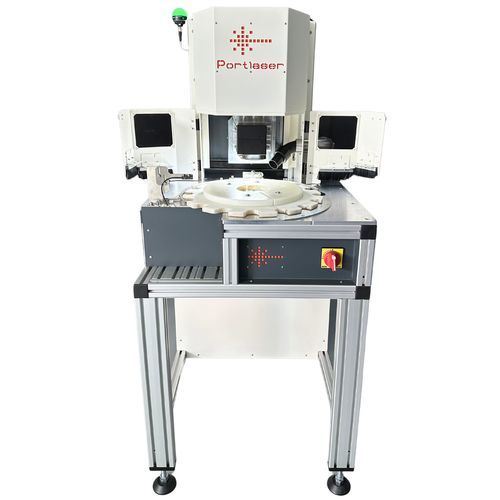

The CMARK INDEX is a laser workstation originally designed for precise engraving of wood and plastic capsule tops. It features a low-maintenance, sealed RF CO2 laser, available in power levels ranging from 30W to 100W. The CMARK INDEX offers a marking area from 70x70mm or 110x110mm, depending on the optical configuration. The system includes an indexer that can be set up with 2, 4, 8, or 16 positions. Although the CMARK INDEX was specifically designed for capsule engraving, its indexing system provides the machine with additional versatility. The machine can be easily adapted to work with various types of products, as long as they are made from materials suitable for a CO2 laser. By preparing a new indexing disk with the appropriate space for the object to be engraved, marked, or coded, the CMARK INDEX can accommodate new applications, offering enhanced flexibility and customization options. The CMARK INDEX is designed as a compact and cost-effective solution, distinguished by its simplicity and efficiency. Main features • CO2 laser with power ranging from 30W to 100W; • Marking areas of 70x70mm or 110x110mm; • MTBF over 40,000 hours; • Automatic Z-axis controlled by software; • Compact and cost-effective system; • Low maintenance needs; • Dedicated software compatible with the Windows operating system, supporting the import of PLT, AI, DXF, BMP, PCX, TIFF, JPEG, PNG, DWG, and other file formats; • TCP/IP and Profinet communication; • Capable of operating in Standalone mode. indexer with 20 positions
