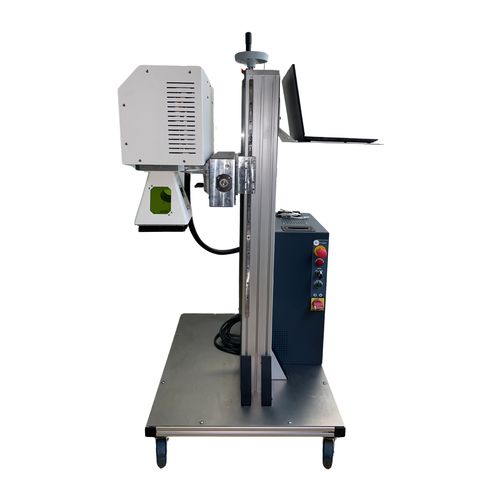

Laser marking system PORTABLE FIBER MARK

fiber laserautomaticmanual

Designed for easy maneuverability, the Portable Fiber Mark comes with wheels that allow it to be moved effortlessly throughout your facility. It features a manual Z-axis for precise control of the laser height. It also includes a manual adjustment on the Y-axis, enabling the laser head to be positioned forward or backward without altering the machine’s overall placement. Additionally, the laser head can be tilted up to 90 degrees, providing flexibility in configuring the laser’s angle to suit various marking, engraving, or coding requirements. The machine is capable of engraving horizontally up to 950mm above the floor and vertically up to 1500mm. This combination of portability, flexibility, and advanced marking capabilities makes it a highly effective solution for diverse industrial marking tasks. Main features • Ytterbium fiber laser with power ranging from 20W to 60W; • Marking areas of 110x110mm, 175x175mm or 220x220mm; • High speed and precision; • MTBF over 100,000 hours; • Allows precise manual adjustment of all its axes; • Enables the laser head to be set at an inclination angle between 0 and 90º. • Maximum height from the ground for horizontal engraving: 950mm; • Maximum height from the ground for vertical engraving: 1500mm. • Compact and cost-effective system; • Low maintenance needs; • Dedicated software compatible with the Windows operating system, supporting the import of PLT, AI, DXF, BMP, PCX, TIFF, JPEG, PNG, DWG, and other file formats; • TCP/IP and Profinet communication; • Air cooling. Ideal for engraving logos, QR codes, serial numbers, expiration dates, patterns, etc.
