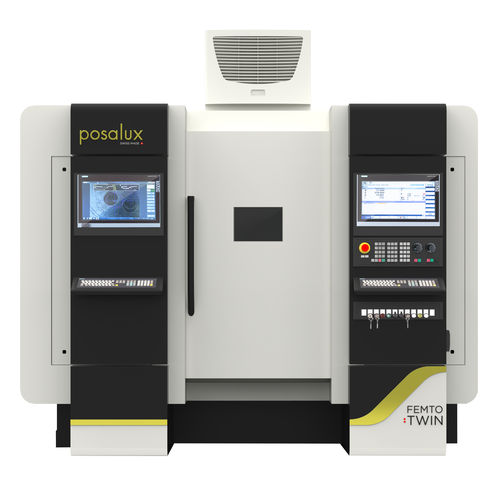

Laser micro-machining machine FEMTO 5-axis

5-axis

Various harmonics available (wave length): nIR and green 5-axis precession head Vision system, beam attenuator, shutter, beam analyser, power recorder Linear axis system allowing high dynamic and accurate motions Machine class 1 (I), FEMTO-LASER class 4 (IV) Siemens 840 D SL, safety integrated CNC Machine at +/- 1°C, operated in over-pressure Technical Highlights : Focal length measurement Automatic loading / unloading solutions Camera for positioning Dust extraction TWIN configuration (hidden time data collection during drilling) COMBI configuration (laser drilling and mechanical milling combined solutions) Product benefits : High productivity, accuracy and repeatability Excellent flow stability in +/- 1% Cp 1.67 Excellent surface roughness down to Ra 50 nm (like polishing) Tapered holes +20° / -15° (reverse) Flexibility in hole shapes machining 6 holes diameter 180 µm / thickness 300 µm – Workpiece cycle time : 12 s (TWIN configuration) FEMTO LASER advantages : High repetition rate and excellent beam quality No thermal effects (NAZ) No deposit, no recast Machining of a wide range of materials Cutting function (ablation) available Quality and expertise : Accurate flow to characterize repeatability and stability Surface roughness measurement (Confocal Laser 3D) Optical and fiber non-destructive measurement to control hole diameter, shape and position Scanning Electron Microscope (SEM) Study and trials on demand
