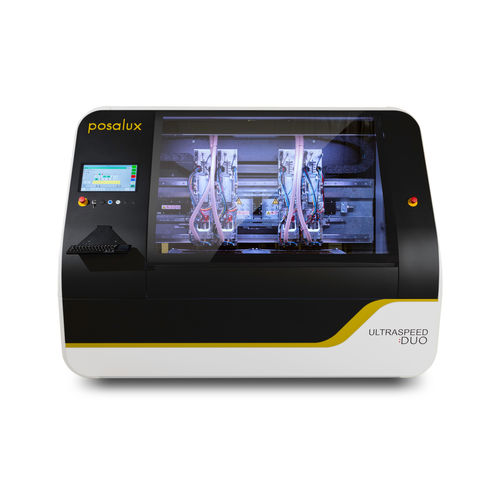

CNC drilling and routing machine Ultraspeed DUO

for printed circuit boardshigh-speed

Innovative and ergonomic design One, two, three, and six stations available in single, combi, or dual version X, Y and Z axis with linear motor drives Workpiece format : 635 x 724 mm (25″ x 28.5″) XY individual technology available on TRIO model (workpiece format : 610 x 724 mm – 24″ x 28.5″) Choice from an extensive range of drilling, routing or combination spindles Spindle speed range from 5’000 to 350’000 rpm Tool management system with chain, Asian Tool Change (ATC) and cassette New Posalux CNC 5000 – Powerful digital servo drives for rigid axis control Advanced concept of Z-axis unit – Increased stiffness, reduced mass New generation of multi-inserts pressure pad (IPF3) for drilling and routing Second measuring system for a perfect surface detection in controlled depth routing Standard and customized clamping systems CCD camera for registration Automation – individual loader with up to 22 levels New concept of Z-axis Reduced mass Improved guiding ratio Higher stiffness IPF3 – Drilling and routing Interchangeable Pressure Foot with 3 positions Configuration with routing brush and large drilling insert Configuration with small and large drilling insert Air gap function : air flow through inserts to avoid any scratching of entry foil Machine versions Single version : one machining unit per station Combi version : Two different and alternating machining units per station Dual version : Two identical machining units per station
