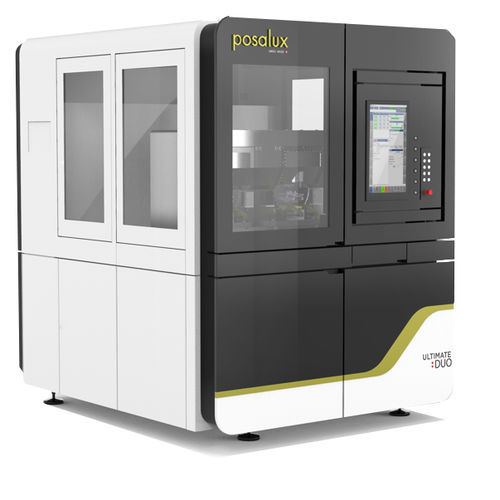

4-axis machining center DUOvertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- X travel
75 mm
(2.95 in)- Y travel
56 mm
(2.2 in)- Z travel
50 mm
(1.97 in)- Rotational speed
55,000 rpm
(345,575 rad.min-1)- Weight
2,000 kg
(4,409.25 lb)- Overall length
1,700 mm
(66.9 in)- Overall width
1,700 mm
(66.9 in)- Overall height
2,225 mm
(87.6 in)
Description
Module:
with 2 micro machining center
machining volume :
50 x 50 x 50 mm
Linear axis characteristics :
max. speed :
30 m/min
max. acceleration :
15 m/s2
Rotating axis characteristics :
axe B :
360° / 1500 min-1
resolution :
0.002 °
Spindle characteristics :
ToolHolder:
ATC-E15
tool Ø
max. 1/8” mm
Catalogs
Ultraspeed DUO
4 Pages
