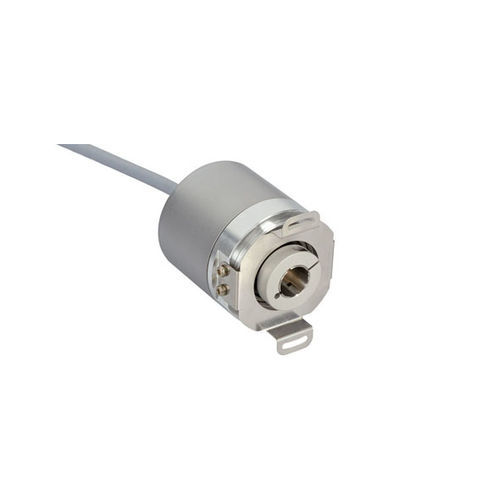

Absolute rotary encoder IXARC

optical14-bit14-bit

Interface - CANopen Profile - DS-406 Manual Functions - Address selector switch 0-99 and terminal resistor (with connection cap) Features - Round Axis Transmission Rate - min. 20 kBaud, max. 1 MBaud Interface Cycle Time - ≥ 1 ms Video Manual - video-link Watch a simple installation video Programming Functions - Resolution, preset, 2 limit switches, 8 CAMS, baud rate, CAN-Identifier, bootloader, transmission modes: polled, cyclic, sync Outputs - Output Driver - Transceiver (ISO 11898), Galvanically Isolated by Opto-Couplers Electrical Data - Supply Voltage - 10 – 30 VDC Current Consumption - ≤ 230 mA @ 10 V DC, ≤ 100 mA @ 24 V DC Power Consumption - ≤ 2.5 W Start-Up Time - < 1 s Reverse Polarity Protection - Yes Short Circuit Protection - Yes EMC: Emitted Interference - DIN EN 61000-6-4 EMC: Noise Immunity - DIN EN 61000-6-2 MTTF - 13.5 years @ 40 °C Sensor - Technology - Optical Resolution Singleturn - 13 bit Resolution Multiturn - 14 bit Multiturn Technology - Mechanical Gearing (no Battery) Accuracy (INL) - ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit) Code - Binary
