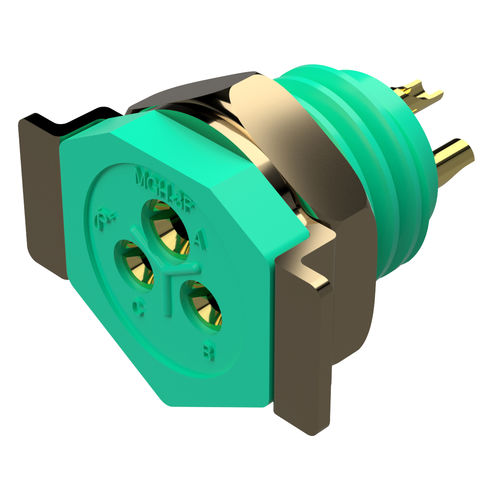

Micro-miniature connector MGH Series

electrical power supplycircularhexagonal

The MGH series is a part of the Circle Hex family for legacy avionics applications. MGH series is a microminiature form factor connector series. MGH series connectors are microminiature, high reliability connectors. They are available with three contacts for providing polarization: two contacts at 0.030 inch [0.76 mm] diameter, and one contact at 0.040 inch [1.02 mm] diameter. The MGH series is rated to 5 amperes per contact. Spacing between contacts is 0.102 inch [2.59 mm], and the face diameter of the connector is 0.312 inch [7.92 mm]. MGH series connectors are ideally applied where limited space is a concern. MGH series connectors can be used as cable connectors, panel-mounted connectors, or probes. Constructed of high performance materials, MGH series connectors are widely used in medical, industrial, military, and automotive applications.
