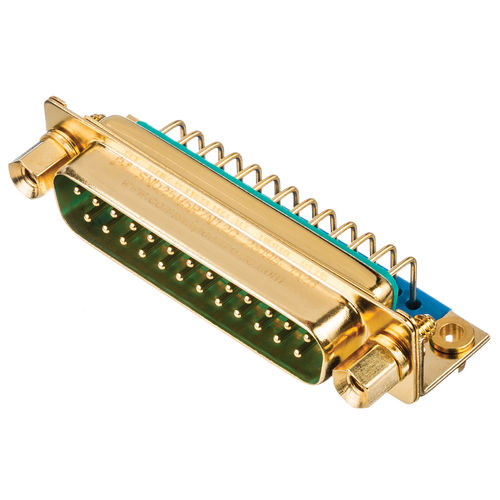

D-sub connector SND SeriesRFPCBrectangular
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- D-sub, PCB
- Shape
- rectangular, straight, right-angle
- Connection type
- female, male, crimp
- Electrical characteristics
- multipole
- Material
- plastic, brass
- Domain
- for aerospace applications
- Other characteristics
- panel-mount, subminiature
- Primary current
9 A
- Voltage
300 V
Description
The SND series is part of the Standard Density D family of standard density D-subs with size 20 machined contacts. SND series connectors features fixed or removable contacts, spaceflight performance and -55°C to 125°C operating temperature
Removable or fixed size 20 contacts. Crimp, solder cup, straight and right angle (90°) printed board mount contact terminations. Five connector variants, 9 through 50 contacts.
Conforming to applicable material, dimensional and performance requirements of GSFC S-311-P4, GSFC S-311-P10 and MIL-DLT-24308 Class M.
Catalogs
High Performance D-Sub Catalog
80 Pages
