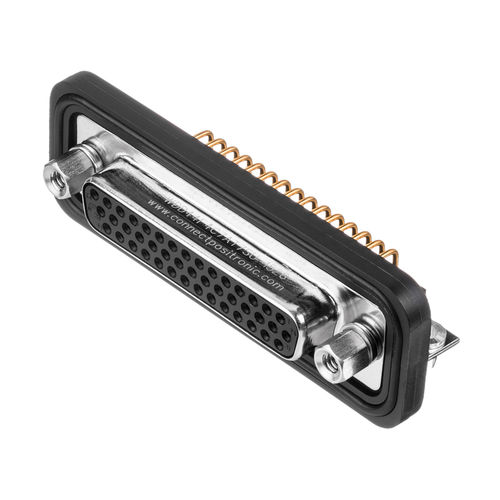

Waterproof connector WDD Series

electrical power supplyD-subPCB

The WDD series is a part of the IP 67 waterproof family applications requiring IP67 waterproofing characteristics. WDD series offer size 22 contacts, industrial level, and panel mount option. WIN-DD connector panel mount sealing plates, when mounted on the walls of enclosures, maintain the dust and water ingress protection rating of IEC 60529 or NEMA 250 enclosure on which they are mounted. WIN-DD connector enclosure assemblies provide dust and water ingress protection to IP67. Refer to Appendix A for detail of IP 67 ratings and NEMA enclosure types 6 and 4X, as well as other enclosures having less stringent environmental requirements. - Popular, economical, high density option for applications requiring sealed connectors. - One piece Unibody connector insert eliminates need for secondary sealing processes. See page 6 for details. - Improved temperature range, increased performance, and lower cost. - Fixed, size 22 contacts - Terminations include solder cup, straight and right angle (90°) printed board mount. - See pre-wired ordering information (page 33) for free/cable connectors. - Three connector variants include 15, 26 and 44, with more being tooled. See WDD section (page 26) for all other high density sizes. - Corrosion protected and corrosion resistant options. - A wide variety of options and accessories.
