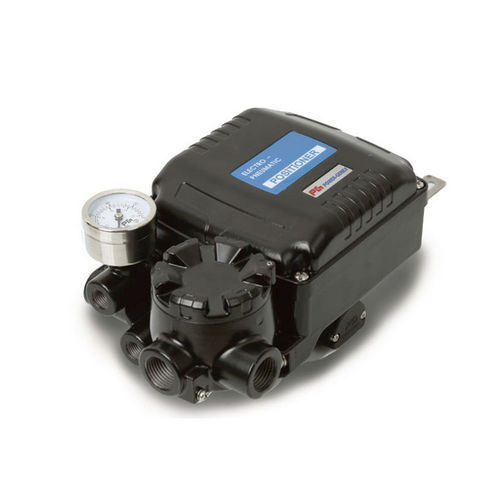

Electro-pneumatic valve positioner NEPL linearIP66small
Add to favorites
Compare this product
Characteristics
- Type
- electro-pneumatic
- Movement
- linear
- Protection class
- IP66
- Other characteristics
- rugged, aluminum, stainless steel, small
- Stroke
Max.: 150 mm
(5.9 in)Min.: 10 mm
(0.4 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 6 bar
(87 psi)- Ambient temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)- Weight
3 kg, 3.3 kg
(6.61 lb, 7.28 lb)
Description
Robust valve control device giving a confidence in reliable performance and outstanding durability under harsh working environments
Features
- Easy maintenance
- Precise calibration with simple SPAN and ZERO adjustments
- Simple conversion to direct acting or reverse acting
- 1/2 split range available
- Rugged aluminum housing with corrosion-resistant coating
- Vibration resistant design
- Stainless steel gauges standard
- Restricted pilot valve orifice kit for small actuators included
- Certified for EMC (K1046/E04) in conformance with EN 61000-6-2:2001 and EN 61000-6-4:2001 by RWTUV
Option
- Position transmitter (4…20㎃ output signal)
- High temperature
- Low temperature
Input signal - 4 ~ 20㎃ DC
Input resistance - 235 ± 15Ω
Pneumatic connections - Rc 1/4 or NPT 1/4
Electrical connections - G 1/2 or NPT 1/2
Protection class - Ex dmb IIC T6/T5, Ex ia IIC T6,
Ambient temperature - -20 ~ +70℃
Pressure gauge - Stainless steel
