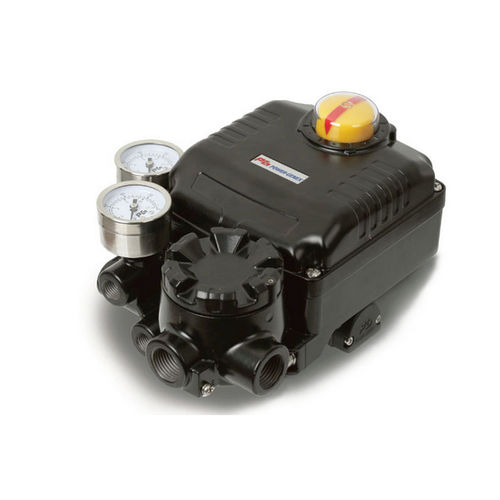

Electro-pneumatic valve positioner NEPR

linearIP66small

Robust valve control device giving a confidence in reliable performance and outstanding durability under harsh working environments Features - Easy maintenance - Precise calibration with simple SPAN and ZERO adjustments - Simple conversion to direct acting or reverse acting - 1/2 split range available - Rugged aluminum housing with corrosion-resistant coating - Vibration resistant design - Stainless steel gauges standard - Restricted pilot valve orifice kit for small actuators included - Certified for ATEX Eex md IIB T5 (05 ATEX 1076X) by NEMKO in conformance with EN 50014:1997, EN 50018:2000 and EN 50028:1987 - Certified for EMC (K1046/E04) in conformance with EN 61000-6-2:2001 and EN 61000-6-4:2001 by RWTUV - Certified for Ex md IIB T6 (99-1075-Q1), Ex md IIC T6 (2000-1057-Q1),and Ex ia IIB T6 (2000-1056-Q1) by KOSHA Option - Position transmitter (4…20㎃ output signal) - 2 X SPDT limit switch - 2 X P&F proximity sensor NJ2-V3-N - Visual dome indicator - High temperature Input signal - 4~20㎃ DC Input resistance - 235 ± 15 Ω Operating angle - 60 ~ 100° Pneumatic connections - Rc 1/4 or NPT 1/4 Electrical connections - G 1/2 or NPT 1/2 Protection class - Ex md IIB T6, Ex md IIC( H₂) T6, Ex ia IIB T6
