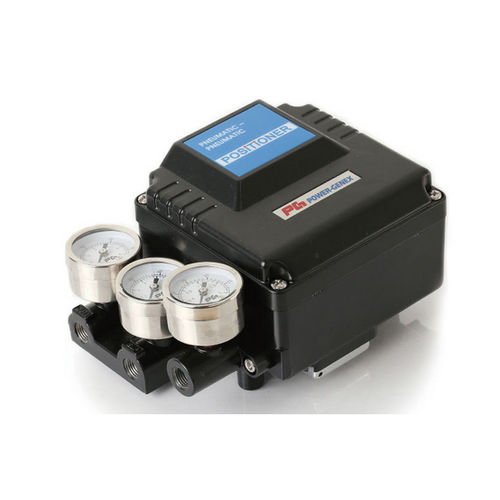

Pneumatic valve positioner PPL
linearsmallstainless steel

pneumatic valve positioner
pneumatic valve positioner
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Movement
linear
Other characteristics
rugged, aluminum, stainless steel, small
Stroke

Max.: 80 mm
(3.1 in)

Min.: 10 mm
(0.4 in)

Pressure

Max.: 7 bar
(101.5 psi)

Min.: 0.2 bar
(2.9 psi)

Ambient temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Weight

2.1 kg
(4.63 lb)

Description

Robust valve control device giving a confidence in reliable performance and outstanding durability under harsh working environments Features - Easy maintenance - Precise calibration with simple SPAN and ZERO adjustments - Simple conversion to direct acting or reverse acting - 1/2 split range available - Rugged aluminum housing with corrosion-resistant coating - Vibration resistant design - Stainless steel gauges standard - Restricted pilot valve orifice kit for small actuators included Option High temperature Pneumatic connections - Rc 1/4 or 1/4 NPT hysteresis - Within 1.0% F.S Repeatability - Within ± 0.5% F.S Air consumption - 5 LPM (Sup. 1.4 kgf/㎤) Flow capacity - 80 LPM (Sup. 1.4 kgf/㎤)
