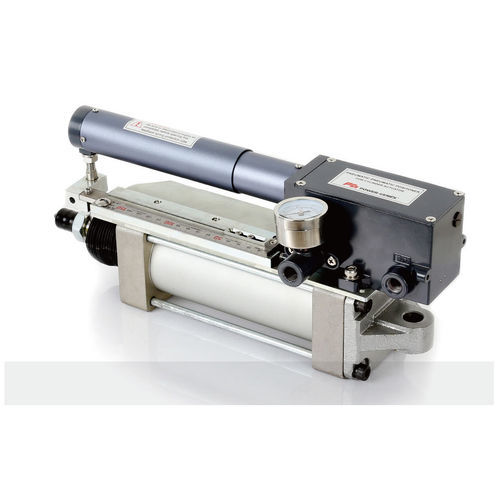

Pneumatic positioner PPCL linearfor cylinderscompact
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Orientation
- linear
- Product applications
- for cylinders
- Other characteristics
- compact
- Weight
2 kg
(4.41 lb)
Description
pneumatic-pneumatic positioner ideally designed and optimized for cylinder actuator and guaranteeing precise and stable performance with cylinder actuator
Features
- Easy to set
- Compact
- Precise and stable performance
- Suitable for a wide application
Pneumatic connections - Rc 1/4 or 1/4NPT
Ambient temperature - -20 ~ +70℃
Pressure gauge - Stainless steel
Output characteristics - Linear
Linearity - Within ± 1.0% F.S
Sensitivity - Within ± 0.5% F.S
hysteresis - Within 1.0% F.S
Repeatability -
Within ± 0.5% F.S
Air consumption - 5 LPM (Sup. 1.4 bar)
Material - Aluminum die-cast
