Direct-operated solenoid valve ESV-S
3/2-wayairNAMUR

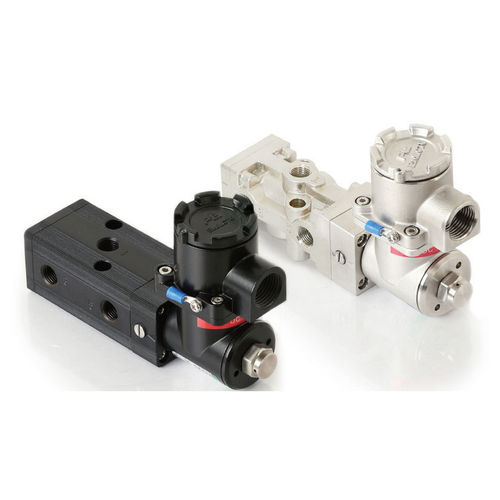

Direct-operated solenoid valve - ESV-S - POWER GENEX - Automatic Valve Accessories - 3/2-way / air / NAMUR
Direct-operated solenoid valve - ESV-S - POWER GENEX - Automatic Valve Accessories - 3/2-way / air / NAMUR
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
3/2-way
Medium
air
Body
NAMUR, flameproof
Other characteristics
ATEX, IECEx, control
DN

0.25 in, 0.5 in

Voltage

24 V, 110 V, 220 V

Temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Description

Explosion proof solenoid valve for a confident control in rough working environments Features - Rotatable valve head for optimal mounting - Direct NAMUR mounting or screw mounting - Usable up to SIL 3 acc. IEC 61508 - Flameproof, Ex d IIC T6/T5/T4 (KC IECEx ATEX) - Dust ignition protection, Ex tb IIIC T85℃/T100℃/T135℃ Db (KC IECEx ATEX) Operating Air Pressure - 1.5 – 10 kgf/㎠ Air Supply (Max.) - 15 kgf/㎠ AC 220V : 6.8W DC 24V : 3.4W Voltage Tolerance - ±10% Frequency - 50Hz / 60Hz Flow Capacity (Cv) - 0.9 Mounting Configuration - NAMUR or screw interface Coil Insulation Grade - Class F or Class H Duty Cycle - 100% Weight - Aluminum / Aluminum : 0.9 kg Aluminum / SS316 : 1.9 kg SS316 / SS316 : 2.3 kg
