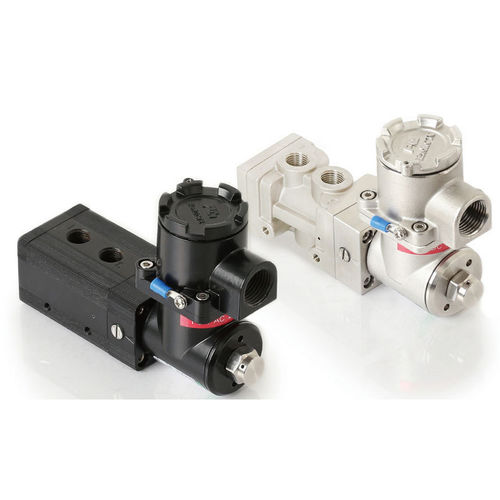

Direct-operated solenoid valve ESV-3 series2-wayairaluminum
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Medium
- air
- Body
- aluminum
- Other characteristics
- explosion-proof, control, SIL 3
- DN
0.25 in, 0.5 in
(0.02 in)- Voltage
24 V, 110 V, 220 V
- Temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)- Pressure
Min.: 1.5 bar
(21.8 psi)Max.: 10 bar
(145 psi)
Description
Explosion proof solenoid valve for a confident control in rough working environments
Features
- Rugged aluminum die-cast housing
- Rotatable valve head for optimal mounting
- Screw mounting
Specifications
Operating Air Pressure -
1.5 – 10 kgf/㎠
Air Supply (Max.) - 15 kgf/㎠
AC 220V : 6.8W
DC 24V : 3.4 W
Voltage Tolerance - ±10%
Frequency - 50Hz / 60Hz
Flow Capacity (Cv) -
0.9
Mounting Configuration - Screw interface
Electrical Connection -
Coil Insulation Grade - Class F or Class H
Duty Cycle - 100%
Weight - Aluminum / Aluminum : 0.8 kg
Aluminum / SS316 : 1.8 kg
SS316 / SS316 : 2.1 kg
