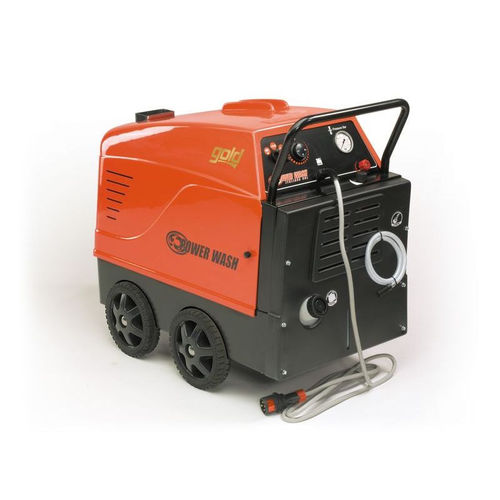

Hot water high-pressure cleaner Gold star

hydraulicmobilewith tank

Professional hot water pressure cleaner with group pump motor at 1450 rpm, motor at double bearings and pump with three ceramic pistons, connecting rods and camshaft. The hydraulic circuit has a bypass valve to regulate pressure, the entry of water directly into the pump. In the electrical panel the controls and the auxiliary circuit are low voltage 24 volt and a thermal overload relay protects the main engine. The burner has a 220 volt motor independent of the main engine, the coil is a double passage of smoke. The aspiration of detergent occurs at low pressure through the venturi system. Shutdown immediate and total at the closure of the gun. -Equipped with two valves; one for the production of steam and the other for the suction of the detergent in high pressure. -The hydraulic circuit is protected by a safety valve. -Red light indicates the absence of fuel and the fl ow level switch stop the flow. -Delayed total stop, halt after 15 seconds delay after the closure of the gun. -Incoming water is in the tank through a floater that regulates the flow.
