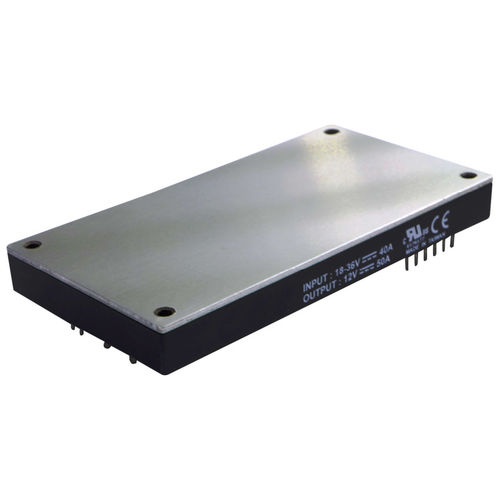

Single-output DC/DC converter PFB600-300S series
SMDregulated2:1 input voltage range

Single-output DC/DC converter - PFB600-300S series - Powerbox - SMD / regulated / 2:1 input voltage range
Single-output DC/DC converter - PFB600-300S series - Powerbox - SMD / regulated / 2:1 input voltage range
Add to favorites
Compare this product


Characteristics

Configuration
SMD
Electrical characteristics
regulated, 2:1 input voltage range, high-voltage
Applications
for railway applications, for telecom applications, military
Other characteristics
insulated, single-output, combined
Input voltage

Max.: 425 V

Min.: 180 V

300 V

Output voltage

Max.: 52.8 V

Min.: 7.2 V

12 V, 24 V, 48 V

Power

600 W

Description

PFB Series regulated and isolated full brick DC/DC converters range from 400W up to 750W with 2:1 and 4:1 inputs. Operating temperature from -40C up to 100C combined with conduction cooling enables the use of PFB converters in various industrial, transportation, defese and telecom indoor and outdoor applications. PFB600-300S Series is HVDC input version of the full brick offering enabling high voltage input from AC/DC front end circuit or high voltage DC bus. 400-600W isolated output Efficiency to 91% Fixed switching frequency Input under/over-voltage protection Over temperature protection Over voltage/current protection Remote ON/OFF Industry full-brick package UL/C-UL 60950 certified Fully isolated 3000VAC Off-line systems using PFC front-ends
