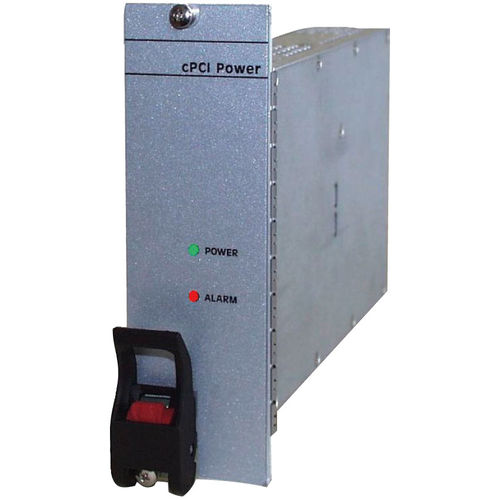

AC/DC power supply cPCI series
DC/DCmultiple-outputswitching

AC/DC power supply - cPCI series - Powerbox - DC/DC / multiple-output / switching
AC/DC power supply - cPCI series - Powerbox - DC/DC / multiple-output / switching
Add to favorites
Compare this product


Characteristics

Type
AC/DC, DC/DC
Output
multiple-output
Technology
switching
Mounting
rack-mount
Features
3U, CompactPCI
Other characteristics
with power factor correction (PFC), redundant
Input voltage

Max.: 230 V

Min.: 18 V

Output voltage

Max.: 12 V

Min.: -12 V

-12 V, 3.3 V, 5 V, 12 V

Current

1.5 A, 7.5 A, 50 A, 80 A

Power

Max.: 400 W

Min.: 200 W

Description

200 and 400 Watt switched mode AC/DC and DC/DC power supplies for cPCI applications in 3U/8HP (200W) and 6U/8HP (400W) Eurocassettes for 19"-plug-in technics. AC-DC converter for 85–264VAC input or DC/DC converter for 24VDC and 48VDC inputs Superior high efficiency >81% at 230VAC, >83% at 48VDC Active Powerfactor Correction PFC 4 outputs +5V, +3,3V, +12V, -12V Hot-swap and current share for N+1 redundant connection Internal decoupling diodes at every output Standard 47 Pin connector per PICMG Standard; I2C Bus optional Operation temperature range -10°C...+55°C with no derating Stable 6U/8HP-Eurokassette of aluminium with ejector handles
