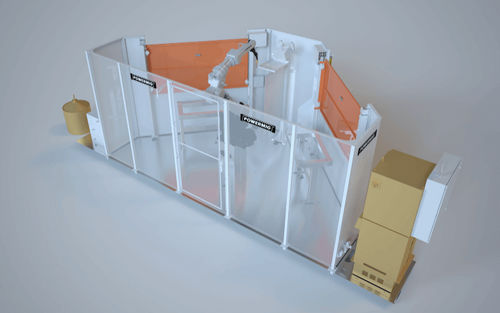

Robotic welding cell MASTER 1600compact
Add to favorites
Compare this product
Characteristics
- Function
- for welding
- Other characteristics
- compact
Description
• “Plug and Play” system;
• Easy to transport and move around the factory;
• Two workstations in a compact area with quick and easy operator access
• Centralized cleaning unit
• 100% use of the table area
• Five year-warranty on the robot;
• TAWERS System – unique to Panasonic, fully integrates the power source and controller.
TECHNICAL SPECIFICATIONS:
Robot model:
TM 1800 Panasonic
Workstations:
02
Welding area:
750 x 1600mm
Overall cell size:
*C:5500 L: 2350 A: 2100 AT: 1000 AS: 900mm
Cargo capacity per station:
1000 KG
Technical Standards
NR10, NR12
