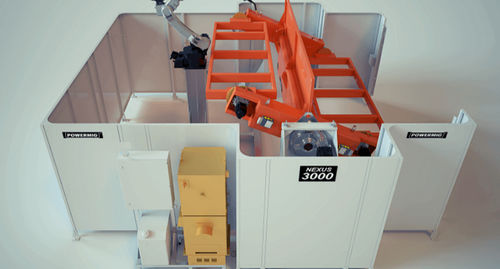

Robotic welding cell NEXUS 3000

for large parts

• Highly productive equipment; • Indicated for larger pieces that require agility in the welding process; • Two robots working simultaneously, considerably increasing production; • Rotation of the table synchronized with the robot, making it a seventh axis of the equipment; • 100% utilization of the welding area; • Two workstations, with a single supply station, which saves space; • Five year-warranty on the robot; • TAWERS System – unique to Panasonic, fully integrates the power source and controller. TECHNICAL SPECIFICATIONS: Robot model: TM 2000 Panasonic Workstations: 02 Welding area: Ø1250 x 3000mm Overall cell size: *C: 4100 L: 5100 A: 2120 AC: 1250mm Cargo capacity per station: 500, 1000 ou 2000 kg Technical Standards NR10, NR12
