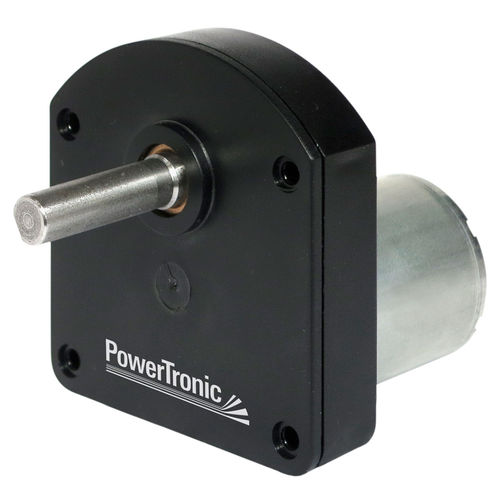

Spur gear-motor SF64.68-BL36.40

BLDCparallel-shaft10 W...50 W

Additional information Width x height mm:68,25 x 64 Rated Voltage VDC:24 Rated Torque Ncm:50 – 130 Speed rpm:92 – 244 Gearmotor Gear Ratio:16, 19.1, 37.3, 42 Rated Torque (Ncm):50, 59, 115, 130 Rated Speed (min '):244, 203, 104, 92 Rel. Humidity: 20 to 85% Ambient Temp.: -20 to +80#C Net Weight max 0.25 kg Motor Rated Voltage (V) : 24 No Load Speed (min') : 4700 No Load Current (A) : 0.26 Rated Speed (min') : 3900 Rated Current (A) : 0.6 Rated Torque (Ncm) : 3.6 Rated Power (W) : 14.7 Radial Load (FR): 130N (10mm from face mountmg) Axial Load (FA): 50N Options - Encoder - Rear Shaft - Leads Connector - Spécial Shaft
