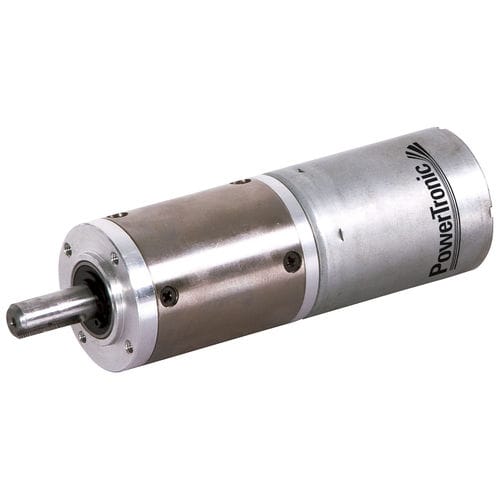

Planetary gear-motor PL42.150-BL42.59three-phaseBLDCcoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase, BLDC
- Type
- planetary
- Shaft orientation
- coaxial
- Power
- 10 W...50 W
- Voltage
- 24 V
- Torque
- 1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm
- Product applications
- industrial
Description
Additional information
Rated Voltage V:24
Rated Torque Ncm:up to 1300
Speed rpm:10-857
Gearmotor
Gear Ratio:3.5;14;21;49;84;104;126;172;294
No Load Speed (min '):1143;286;190;82;48;38;32;23;14
Rated Speed (min '):857;214;143;61;36;29;24;17;10
Rated Torque (Ncm):21;77;110;240;410;510;620;770;1300
Peak Torque (Ncm):300;1200;1200;2500;2500;2500;2500;3000;3000
No. of Stages:1;2;2;3;3;3;3;4;4
Length L (mm):32.5;39.2;39.2;46;46;46;46;52.5;52.5
Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +60°C
Motor
No. of Pôles:10
No. of Phases:3
Rated Voltage (V):24
No Load Speed (min ’):4000
Rated Speed (min '):3000
Rated Torque (Ncm):6.8
Rated Current (A):1.2
Rated Power (W):21
Options
-Encoder
-Rear Shaft
-Connector
-Special Shaft
-Special Voltage
