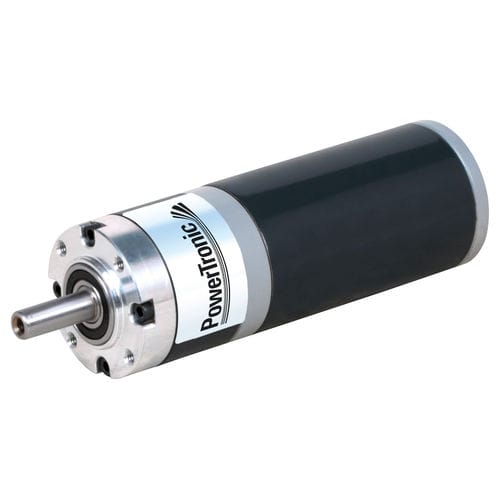

Planetary gear-motor PL42Z-BL42.93
three-phaseBLDCcoaxial

Planetary gear-motor - PL42Z-BL42.93 - Powertronic Drive Systems GmbH - three-phase / BLDC / coaxial
Planetary gear-motor - PL42Z-BL42.93 - Powertronic Drive Systems GmbH - three-phase / BLDC / coaxial
Add to favorites
Compare this product


Characteristics

Motor type
three-phase, BLDC
Type
planetary
Shaft orientation
coaxial
Power
10 W...50 W
Voltage
24 V
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm
Performance
low-noise, high-torque
Product applications
industrial

Description

Additional information Rated Voltage V: 24 Rated Torque Ncm:up to 1500 Speed rpm:7.6-822 Gearmotor Gear Ratio:3.65;5.36;6.55;8.63;14;19;25;28;34;45;58;67;81;91;103;119;128;146;165;192;232;302;393 Rated Speed (min1):822;560;458;348;222;159;122;107;89;67;52;45;37;33;29;25;24;21;18;16;13;9.9;7.6 Rated Torque (Ncm):41;60;74;98;137;190;252;284;348;458;600;616;742;837;948;1090;1169;1343;15001500;1500;1500;1500 Réduction Stage:1;1;1;1;2;2;2;2;2;2;2;3;3;3;3;3;3;3;3;3;3;3;3 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +80°C | Net Weight max. 1.05kg Motor Model:2440-30S Rated Voltae V:24 Rated Power W:40 No Load Current A:1.0 No Load Speed min1:4700 Rated Current A:2.5 Rated Speed min1:3000 Rated Torque Ncm:12.7 Radial Load (FR): 300N | Axial Load (FA): 110N Options -Encoder -Rear Shaft -Special Shaft
