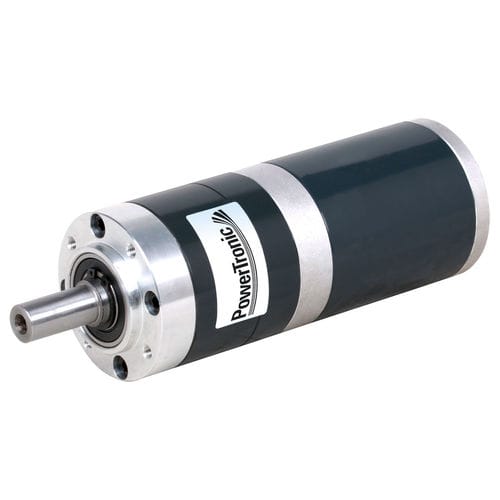

Planetary gear-motor PL72Z-BL72.107
three-phaseBLDCcoaxial

Planetary gear-motor - PL72Z-BL72.107 - Powertronic Drive Systems GmbH - three-phase / BLDC / coaxial
Planetary gear-motor - PL72Z-BL72.107 - Powertronic Drive Systems GmbH - three-phase / BLDC / coaxial
Add to favorites
Compare this product


Characteristics

Motor type
three-phase, BLDC
Type
planetary
Shaft orientation
coaxial
Power
100 W...500 W
Voltage
24 V
Torque
1 - 5 Nm, 20 - 50 Nm, 5 - 10 Nm, 50 - 100 Nm, 10 - 20 Nm
Performance
low-noise, high-torque
Product applications
industrial

Description

Additional information Rated Voltage V:24 Rated Torque Ncm:up to 8400 Speed rpm:7.6-822 Gearmotor Gear Ratio:3.65;5.36;6.55;8.63;14;19;25;28;34;45;58;67;81;91;103;119;128;146;165;192;232;302;393 Rated Speed (min1):822;560;458;348;222;159;122;107;89;67;52;45;37;33;29;25;24;21;18;16;13;9.9;7.6 Rated Torque (Ncm):125;184;225;297;433;588;774;866;1052;1392;1795;1868;2259;2538;2872;3318;3569;4071;4601;5354;6470;8400;8400 Réduction Stage:1;1;1;1;2;2;2;2;2;2;2;3;3;3;3;3;3;3;3;3;3;3;3 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +80°C | Net Weight max. 3.9kg Motor Rated Voltage V:24 Rated Power W:120 No Load Current A:0.8 No Load Speed min1:3700 Rated Current A:6.6 Rated Speed min1:3000 Rated Torque Ncm:38.2 Radial Load (FR): 760N | Axial Load (FA): 160N
