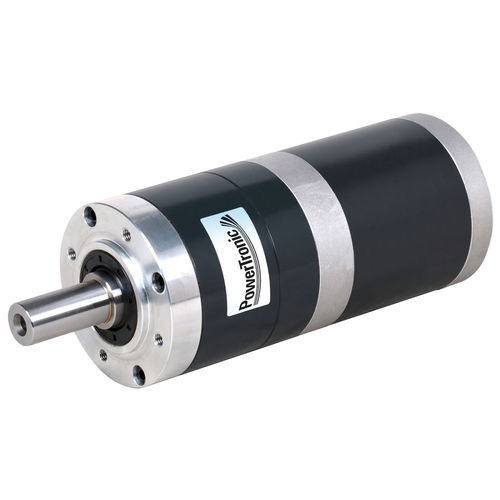

Planetary gear-motor PL82Z-BL82.137
three-phaseBLDCcoaxial

Planetary gear-motor - PL82Z-BL82.137 - Powertronic Drive Systems GmbH - three-phase / BLDC / coaxial
Planetary gear-motor - PL82Z-BL82.137 - Powertronic Drive Systems GmbH - three-phase / BLDC / coaxial
Add to favorites
Compare this product


Characteristics

Motor type
three-phase, BLDC
Type
planetary
Shaft orientation
coaxial
Power
100 W...500 W
Voltage
24 V
Torque
1 - 5 Nm, 20 - 50 Nm, 5 - 10 Nm, 50 - 100 Nm, 100 - 200 Nm, 10 - 20 Nm
Performance
low-noise, high-torque
Product applications
industrial

Description

Additional information Rated Voltage V:24 Rated Torque Ncm:up to 12000 Speed rpm:7.6-822 Gearmotor Gear Ratio:3.65;5.36;6.55;8.63;14;19;25;28;34;45;58;67;81;91;103;119;128;146;165;192;232;302;393 Rated Speed (min'1):822;560;458;348;222;159;122;107;89;67;52;45;37;33;29;25;24;21;18;16;13;9.9;7.6 Rated Torque (Ncm):314;461;563;742;1083;1470;1934;2166;2630;3481;4487;4671;5647;6344;7181;8296;8924;10178;11503;12000;12000;12000;12000 Réduction Stage:1;1;1;1;2;2;2;2;2;2;2;3;3;3;3;3;3;3;3;3;3;3;3 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +80°C | Net Weight max. 4.8kg Motor Rated Voltage V:24;24 Rated Power W:200;300 Rated Current A:12;18 Rated Speed min1:3000;3000 Rated Torque Ncm:63.7;95.5 Duty Cycle:S1;S2-30 min Radial Load (FR): 1000N | Axial Load (FA): 200N
