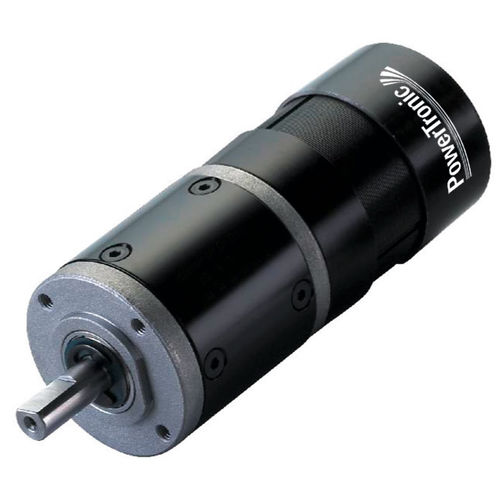

Gear-motor with integrated electronics PL42H-BL42three-phaseBLDCplanetary
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase, BLDC
- Type
- planetary
- Shaft orientation
- coaxial
- Power
- 10 W...50 W
- Voltage
- 24 V, 12 V
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm
- Product applications
- industrial
- Other characteristics
- 4-pole, with integrated electronics
Description
Additional information
Rated Voltage V:12 / 24
Rated Torque Ncm:up to 300
Speed rpm:0.95-300
Gearmotor
Gear Ratio:15;17;20;25;51;64;84;100;120;180;294;500;600;720;1062;1470;2500;3000;3600
12 V:
Rated Torque (Ncm):16;18.4;22.4;28;48;60;80;96;112;144;176;232;300;300;300;300;300;300;300;300
Rated Speed (min1):200;175;150;115;58;47;35;30;25;16;13;10;6.2;5.2;4.5;3.0;2.3;1.3;1.15;0.95
24 V:
Rated Torque (Ncm):36;43;50;65;110;140;180;200;200;250;250;300;300;300;300;300;300;300;300;300
Rated Speed (min1):300;260;220;170;85;69;52;44;37;25;20;15;8.9;7.5;6.3;4.3;3.1;1.8;1.6;1.3
Length L1 (mm):39.2;39.2;39.2;39.2;45.9;45.9;45.9;45.9;45.9;52.6;52.6;52.6;52.6;52.6;52.6;59.6;59.6;59.6;59.6;59.6
Radial Load (FR): 80N (10mm from face mounting) | Axial Load (FA): 30N | Net Weight max. 586g
Options
-Rear Shaft
-Connector
-Special Shaft
-Special Voltage
