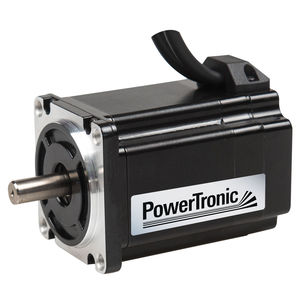

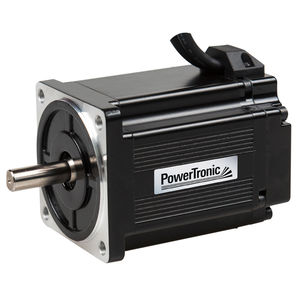

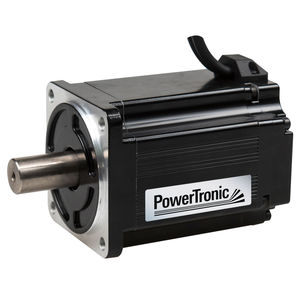

BLDC motor BL86S series
three-phase48 V8-pole

BLDC motor - BL86S series - Powertronic Drive Systems GmbH - three-phase / 48 V / 8-pole
BLDC motor - BL86S series - Powertronic Drive Systems GmbH - three-phase / 48 V / 8-pole
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
BLDC
Voltage
48 V
Number of poles
8-pole
Power

110 W, 220 W, 310 W, 440 W, 620 W
(0.15 hp, 0.299 hp, 0.421 hp, 0.598 hp, 0.843 hp)

Torque

Min.: 0.35 Nm
(0.2581 ft.lb)

Max.: 2 Nm
(1.4751 ft.lb)

0.7 Nm, 1 Nm
(0.5163 ft.lb, 0.7376 ft.lb)

Rotational speed

3,000 rpm
(18,849.56 rad.min-1)

Diameter

86 mm
(3.39 in)

Description

Additional information Rated Voltage V:48 Rated Torque Ncm:70 / 100 Speed rpm:3000 Technical Data ModelBL86.54S/BL86.67S/BL86.81S/BL86.94S/BL86.121S Rated Voltage (V):24;48;48;48;48 Rated Speed (min1):3000;3000;;3000;3000;3000 Rated Torque (Nom):35;70;100;140;200 Rated Power (W):110;220;310;440;620 Rated Current (A):6.5;5.8;8.6;12;17.2 Peak Current (A):19.5;17.4;;25.8;36;51.6 Peak Torque (Nom):105;210;;300;420;600 Rotor Inertia (gcm!):1000;1600;1900;;2100;2000 Torque Constant (Nom/A):5;12;11;12;11 Back EMF (V/min1):4.5;11;10.5;11;10 Résistance (Q):0.4;0.6;0.5;0.4;0.5 Inductance (mH):0.4;0.5;0.4;0.3;0.5 Length (mm):54;66.5;80.5;93.5;121 Net Weight (kg):1.2;1.8;2.2;2.6;3.2 No. of Pôles:8 No. of Phases:3 Insulation Class:B
