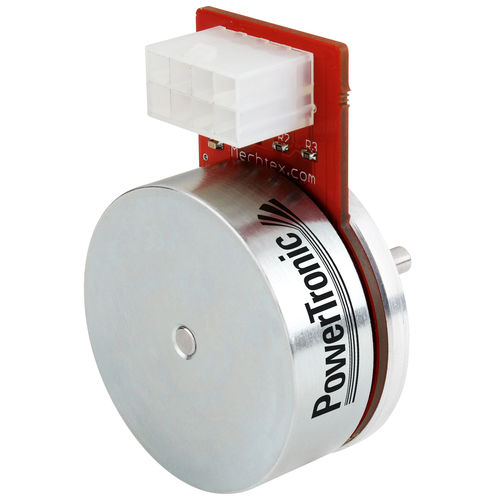

Three-phase motor BL44.22BLDC24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- BLDC
- Voltage
- 24 V, 12 V
- Configuration
- external rotor
- Power
41 W
(0.056 hp)- Torque
0.083 Nm
(0.0612 ft.lb)- Rotational speed
Max.: 8,000 rpm
(50,265.48 rad.min-1)Min.: 2,000 rpm
(12,566.37 rad.min-1)4,994 rpm
(31,378.23 rad.min-1)- Diameter
43 mm
(1.69 in)
Description
Additional information
Rated Voltage VDC:12 / 24
Rated Power W:41
Speed rpm:2.000-8.000
Technical Data
Rated Voltage (V):24
Rated Speed (min'):4994
Rated Torque (Ncm):8.3
Rated Power (W):41
Rated Current (A):2.3
No Load Speed (min '):6710
No Load Curent Stall Torque (Ncm):0.23
Stall Current (A):78
Rotor Inertia (gcm2):23.3
Résistance ((Ω) :1.2
Inductance (mH):0.48
Net Weight (g):110
Insulation Class :E
Sensor Supply Range: 4.2-24 V
Protection: IP40
