Planetary gear-motor PL32Z-DC31.75
DCcoaxial10 W...50 W

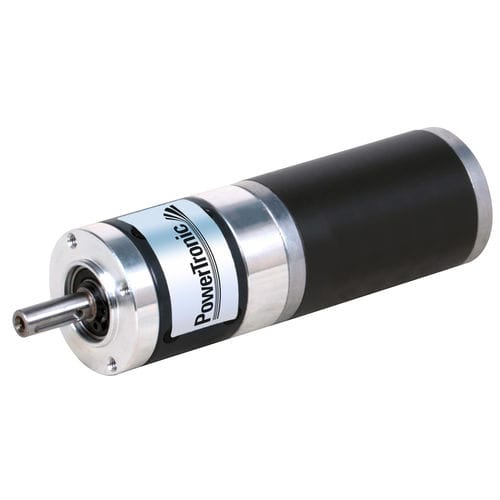

Planetary gear-motor - PL32Z-DC31.75 - Powertronic Drive Systems GmbH - DC / coaxial / 10 W...50 W
Planetary gear-motor - PL32Z-DC31.75 - Powertronic Drive Systems GmbH - DC / coaxial / 10 W...50 W
Add to favorites
Compare this product


Characteristics

Motor type
DC
Type
planetary
Shaft orientation
coaxial
Power
10 W...50 W, 0 W...10 W
Voltage
24 V, 12 V
Torque
1 - 5 Nm, 0.5 - 1 Nm, 0.1 - 0.2 Nm, 0.2 - 0.5 Nm, 0 - 0.1 Nm
Performance
low-noise, high-torque
Product applications
industrial

Description

Additional information Rated Voltage V:24 Rated Torque Ncm:8-400 Speed rpm:13-1081 Gearmotor Gear Ratio:3.7;4.29;5.18;6.75;14;19;25;29;35;46;51;68;79;93;100;115;130;150;169;195;236;308 Rated Speed (min1):984;848;703;539;259;191;146;125;104;79;71;54;46;39;36;32;28;24;21;18;15;123 Rated Torque (Ncm):6.4;7.2;9;12;22;30;38;45;54;71;71;95;110;130;139;160;182;209;236;272;320;400 Réduction Stage:1;1;1;1;2;2;2;2;2;2;3;3;3;3;3;3;3;3;3;3;3;3 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +80°C | Net Weight max. 360g Motor Model:2407-36;2438-71 Rated Voltage V:24;24 Rated Power W:7.2;38 No Load Current A:0.07;0.3 No Load Speed min1:4250;8100 Rated Current A;0.4;2.1 Rated Speed min1;3640;7100 Rated Torque Ncm;1.9;5.2 Also available as standard: 12 V Options -Encoder -Rear Shaft -Connector -Special Shaft -Special Voltage
