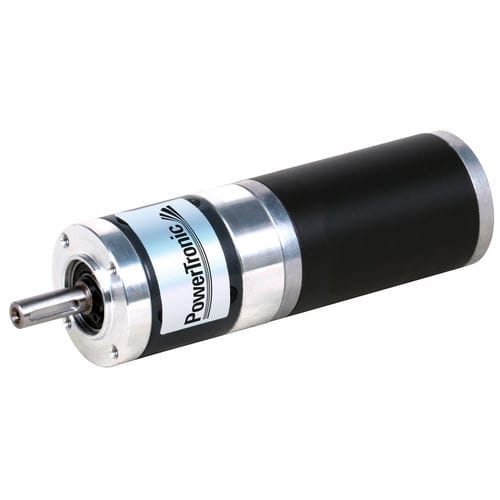

Planetary gear-motor PL42Z-DC42.118
DCcoaxial10 W...50 W

Planetary gear-motor - PL42Z-DC42.118 - Powertronic Drive Systems GmbH - DC / coaxial / 10 W...50 W
Planetary gear-motor - PL42Z-DC42.118 - Powertronic Drive Systems GmbH - DC / coaxial / 10 W...50 W
Add to favorites
Compare this product


Characteristics

Motor type
DC
Type
planetary
Shaft orientation
coaxial
Power
10 W...50 W
Voltage
24 V
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm
Performance
low-noise, high-torque
Product applications
industrial

Description

Additional information Rated Voltage V:24 Rated Torque Ncm:26-1500 Speed rpm:7.6-822 Gearmotor Gear Ratio:3.65;5.36;6.55;8.63;14;19;25;28;34;45;5867;81;91;103;119;128;146;165;192;232;302;393 Rated Speed (min1):822;560;458;348;214;158;120;107;88;67;52;45;37;33;29;25;24;21;18;16;13;9.9;7.6 Rated Torque (Ncm):26;38;47;62;87;120;160;180;220;290;380;390;470;530;600;690;740;850;960;1100;1300;1500;1500 Réduction Stage:1;1;1;1;2;2;2;2;2;2;2;3;3;3;3;3;3;3;3;3;3;3;3 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +80°C | Net Weight max. 990g Motor Model:2425-30S;2430-30S Rated Voltage V:24;24 Rated Power W:25;30 No Load Current A:0.6;0.7 No Load Speed min1:3800;4000 Rated Current A:1.6;2.0 Rated Speed min1:3000;3000 Rated Torque Ncm:8.0;9.6 Options -Encoder -Rear Shaft -Connector -Special Shaft
