Planetary gear-motor PL52Z-DC52.113
DCcoaxial10 W...50 W

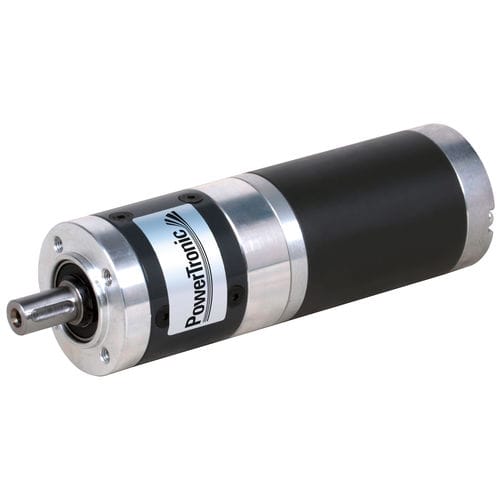

Planetary gear-motor - PL52Z-DC52.113 - Powertronic Drive Systems GmbH - DC / coaxial / 10 W...50 W
Planetary gear-motor - PL52Z-DC52.113 - Powertronic Drive Systems GmbH - DC / coaxial / 10 W...50 W
Add to favorites
Compare this product


Characteristics

Motor type
DC
Type
planetary
Shaft orientation
coaxial
Power
10 W...50 W
Voltage
24 V
Torque
1 - 5 Nm, 20 - 50 Nm, 5 - 10 Nm, 10 - 20 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm
Performance
low-noise, high-torque
Product applications
industrial

Description

Additional information Rated Voltage V:24 Rated Torque Ncm:42-2500 Speed rpm:7.6-822 Gearmotor Gear Ratio:3.65;5.36;6.55;8.63;14;19;25;28;34;45;58;67;81;91;103;119;128;146;165;192;232;302;393 Rated Speed (min'1):822;560;458;348;222;159;122;107;89;67;52;45;37;33;29;25;24;21;18;16;13;9.9;7.6 Rated Torque (Ncm):42;61;75;99;144;196;258;289;351;464;598;623;753;846;957;1106;1190;1357;1534;1785;2157;2500;2500 Réduction Stage:1;1;1;1;2;2;2;2;2;2;2;3;3;3;3;3;3;3;3;3;3;3;3 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +80°C | Net Weight max. 2.0kg Motor Model :2440-30S Rated Voltage V: 24 Rated Power W:40 No Load Current A:1.0 No Load Speed min-1:3500 Rated Current A:2.5 Rated Speed min-1:3000 Rated Torque Ncm:12.7 Options - Encoder - Rear Shaft - Connector - Special Shaft
