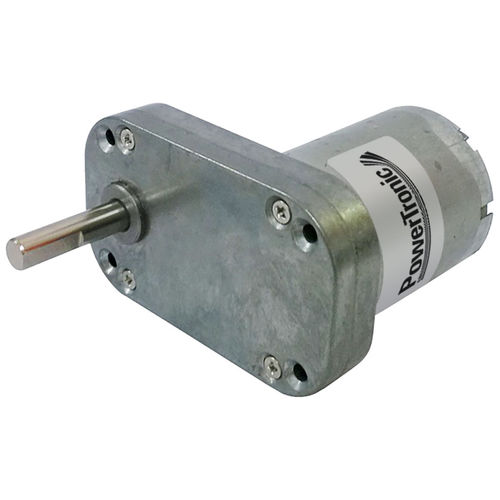

Spur gear-motor SF38.64-DC35.40DCparallel-shaft0 W...10 W
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Type
- spur
- Shaft orientation
- parallel-shaft
- Power
- 0 W...10 W
- Voltage
- 24 V, 12 V
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm
- Product applications
- industrial
- Other characteristics
- flat
Description
Additional information
Width x height mm:38×64,4
Rated Voltage VDC:12-24
Rated Torque Ncm:20-200
Speed rpm:8-89
Gearmotor
Gear Ratio:40.5;67.5;135;225;450
12V
Rated Torque (Ncm):27;30;84;100;200
Rated Speed (min -1):89;53;27;16;8
24V
Rated Torque (Ncm):27;30;85;100;200
Rated Speed (min -1):89;53;27;16;8
Ambient Temp.: -10 to +60°C
Motor
Rated Voltage(V):12;24
No Load Speed(min-1):4500;4500
No Load Current(mA):≤50;≤45
Rated Speed(min-1):3600;3600
Rated Current(mA):≤420;≤215
Rated Torque(Ncm):0.96;0.97
Rated Power(W):3.6;3.7
Stall Current(mA):≥1790;≥910
Stall Torque(Ncm):≥4.3;≥4.4
Options
-Encoder
-Rear Shaft
-EMC Filter
-Leads
-Connector
-Special Shaft
-Special Voltage
-Ball Bearing
Catalogs
Product Catalogue DC | BLDC
128 Pages
