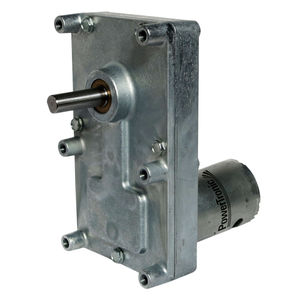

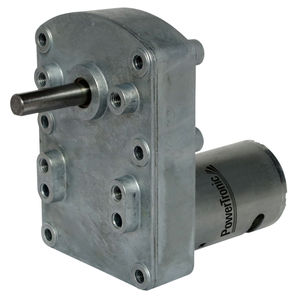

Spur gear-motor SF64.68-DC36.58DCparallel-shaft0 W...10 W
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Type
- spur
- Shaft orientation
- parallel-shaft
- Power
- 0 W...10 W
- Voltage
- 24 V, 12 V
- Torque
- 0.5 - 1 Nm, 0.2 - 0.5 Nm
- Product applications
- industrial
- Other characteristics
- flat
Description
Additional information
Width x height mm:64 x 68,25
Rated Voltage VDC:24
Rated Torque Ncm:27 – 70
Speed rpm:85 – 225
Gearmotor
Gear Ratio:16;19.1;37.3;42
Rated Torque (Ncm):27;33;6470
Rated Speed (min-1):225;188;96;85
Rel. Humidity: 20 to 85%
Ambient Temp.: - 20 to +80 °C
Net Weight max. 0.28 kg
Motor
Rated Voltage (V):24
No Load Speed (min-1):4250
No Load Current (A):0.09
Rated Speed (min1):3600
Rated Current (A):0.44
Rated Torque (Ncm):2.0
Rated Power (W):7.5
(Also available as standard: 12V)
Options
-Encoder
-Rear Shaft
-EMC Filter
-Leads
-Connector
-Special Shaft
-Special Voltage
Catalogs
Product Catalogue DC | BLDC
128 Pages
