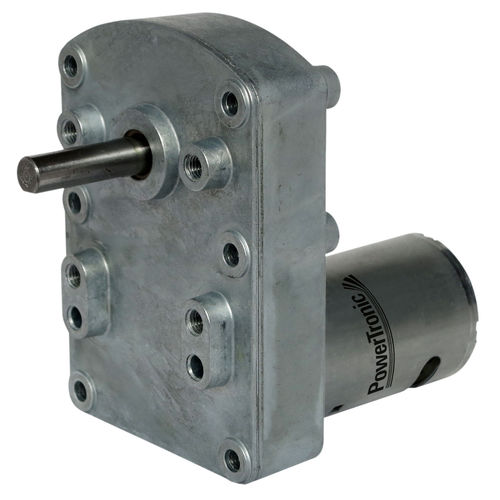

Spur gear-motor SF64.92-DC36.58DCparallel-shaft0 W...10 W
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Type
- spur
- Shaft orientation
- parallel-shaft
- Power
- 0 W...10 W
- Voltage
- 24 V, 12 V
- Torque
- 1 - 5 Nm, 5 - 10 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm
- Product applications
- industrial
- Other characteristics
- flat
Description
Additional information
Width x height mm:63,5 x 92
Rated Voltage VDC:24
Rated Torque Ncm:20 – 2590
Speed rpm:2,3 – 310
Gearmotor
Gear Ratio:11.8;14.1;17;18.8;21.3;25.2;28.3;31.5;42.5;63;85;126;425;584
Rated Torque (Ncm):20;24;28;31;36;41;47;52;70;100;140;210;700;920
Rated Speed (min1):310;258;215;191;172;143;129;114;86;57;43;29;8.66.7
Rel. Humidity: 20 to 85% | Ambient Temp.: -20 to +80°C | Net Weight max. 0.6 kg
Motor
Rated Voltage (V) :24
No Load Speed (min-1):4250
No Load Current (A) :0.09
Rated Speed (min-1):3600
Rated Current (A) :0.44
Rated Torque (Ncm): 2.0
Rated Power (W):7.5
(Also available as standard: 12V)
Options
-Encoder
-Rear Shaft
-EMC Filter
-Leads
-Connector
-Special Shaft
-Special Voltage
Catalogs
Product Catalogue DC | BLDC
128 Pages
