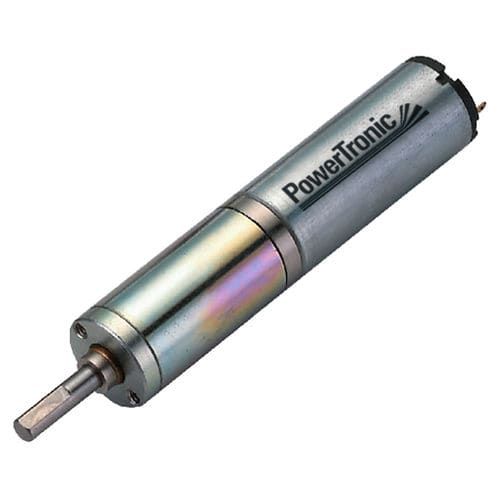

Planetary gear-motor PL12-DC12.30

DCcoaxial0 W...10 W

Additional information Rated Voltage V:2.4 / 3 Speed rpm:3-2400 Gearmotor Gear Ratio:4;16;64;256;1024;4096 2.4V Rated Torque (Ncm):0.2;0.7;2.5;8.4;20;20 Rated Speed (min-1):2400;600;150;38;10;3 3.0V Rated Torque (Ncm):0.2;0.7;2.3;7.8;20;20 Rated Speed (min-1):2400;610;150;39;10;3 Length L (mm):42.8;46.1;49.4;52.7;56.0;59.3 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +60°C | Net Weight max. 36g Motor Rated Voltage (V) :2.4;3.0 Rated Torque (Ncm) :0.06;0.06 Rated Speed (min-1): 10000;10000 Rated Current (mA) :≤450;≤340 No Load Speed (min-1): 12500;12500 No Load Current (mA): ≤130;≤80 Rated Power (W):0.62;0.59 Options -Encoder -Rear Shaft -EMC Filter -Leads -Connector -Special Shaft -Special Voltage
