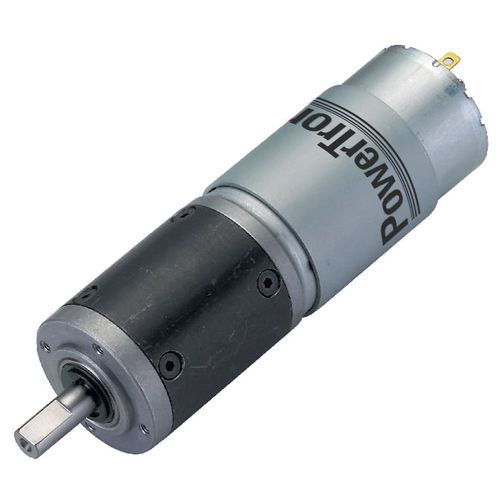

Planetary gear-motor PL38-DC38.65DCcoaxial10 W...50 W
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Type
- planetary
- Shaft orientation
- coaxial
- Power
- 10 W...50 W
- Voltage
- 24 V, 12 V
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm, 0.1 - 0.2 Nm, 0.2 - 0.5 Nm
- Product applications
- industrial
Description
Additional information
Rated Voltage V:12 / 24
Speed rpm:8-1100
Gearmotor
Gear Ratio:5;14;19;27;51;71;100;139;189;264;516;721
12V
Rated Torque (Ncm):10;24;33;47;76;100;150;200;230;250;300;300
Rated Speed (min-1):1100;420;300;210;110;81;58;41;30;23;12;8
24 V
Rated Torque (Ncm):11;27;37;52;85;120;160;200;250;250;300;300
Rated Speed (min-1):1050;390;280;200;105;76;55;41;29;23;12;8
Length L (mm):98.1;106.8;106.8;106.8;115.5;115.5;115.5;115.5;124.2;124.2;124.2;124.2
Motor
Rated Voltage (V):12;24
Rated Torque (Ncm):2.5;2.8
Rated Speed (min-1):5800;5500
Rated Current (mA):≤1600;≤900
No Load Speed (min-1):6400;6400
No Load Current (mA):≤300;≤160
Rated Power (W):14.89;15.81
Options
-Encoder
-EMC Filter
-Leads
-Connector
-Special Shaft
-Special Voltage
