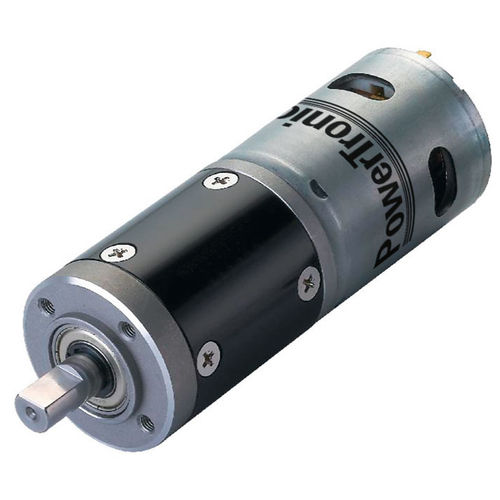

Planetary gear-motor PL52-DC52.69
DCcoaxial50 W...100 W

planetary gear-motor
planetary gear-motor
Add to favorites
Compare this product


Characteristics

Motor type
DC
Type
planetary
Shaft orientation
coaxial
Power
50 W...100 W, 10 W...50 W
Voltage
24 V, 12 V
Torque
1 - 5 Nm, 5 - 10 Nm, 0.5 - 1 Nm, 0.1 - 0.2 Nm, 0.2 - 0.5 Nm
Product applications
industrial

Description

Additional information Rated Voltage V:12 / 24 Speed rpm:8-1560 Gearmotor Gear Ratio:3;4;12;15;19;43;53;66;81;100;113;150;230;285;353;488;546;676 12V Rated Torque (Ncm):13;16.5;41;50;63;120;150;190;230;280;320;360;550;680;840;1000;1000;1000 Rated Speed (min-1):1560;1260;450;369;305;130;105;85;69;56;50;37;24;20;16;12;10;8 24 V Rated Torque (Ncm):18;22;55;68;85;160;200;250;310;390;440;480;740;920;1000;1000;1000;1000 Rated Speed (min-1):1520;1230;444;359;290;127;102;83;67;54;48;36;24;19;16;12;11;8 Length L (mm):122;122;137.5;137.5;137.5;153;153;153;153;153;153;168.5;168.5;168.5;168.5;168.5;168.5;168.5 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +60°C | Net Weight max. 1.5kg Motor Rated Voltage (V):12;24 Rated Torque (Ncm):4.8;6.5 Rated Speed (min-1):5600;5450 Rated Current (mA):≤5600;≤2750 No Load Speed (min-1):6000;6000 No Load Current (mA):≤1750;≤750 Rated Power (W):58.6;48.3 Options -Encoder -Rear Shaft -EMC Filter -Leads -Connector -Special Shaft -Special Voltage
