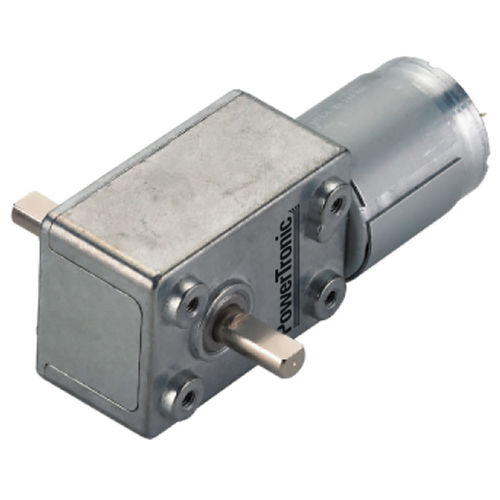

DC gear-motor SN32.46-DC26.31right angle0 W...10 W24 V
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Shaft orientation
- right angle
- Power
- 0 W...10 W
- Voltage
- 24 V, 12 V
- Torque
- 0.5 - 1 Nm, 0.2 - 0.5 Nm, 0.1 - 0.2 Nm
- Product applications
- industrial
Description
Additional information
Rated Voltage VDC:12-24
Rated Power W:up to 2,37
Speed rpm:4,6-55,5
Gearmotor
Gear Ratio:75;100;200;300;500;700;900;1012
12V
Rated Torque (Ncm):14;19;38;55;60;60;60;60
Rated Speed (min-1):55.5;42;20.5;14;8.8;6.5;5.1;4.6
24 V
Rated Torque (Ncm):14;19;38;55;60;60;60;60
Rated Speed (min-1):55.5;42;20.5;14;8.8;6.5;5.1;4.6
Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +60°C | Net Weight 180g
Motor
Rated Voltage (V):12;24
Rated Torque (Ncm):0.553;0.553
Rated Speed (min-1):4710;4710
Rated Current (mA):≤240;≤140
No Load Speed (min-1):4900;4900
No Load Current (mA):≤60;≤30
Rated Power (W):2.37;2.37
Options
-Encoder
-EMC Filter
-Leads
-Connector
-Special Shaft
-Special Voltage
