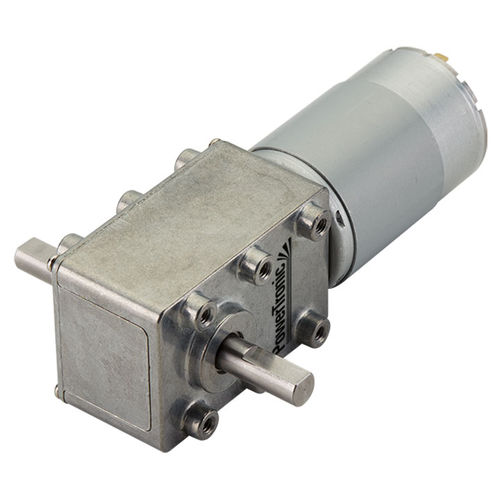

DC gear-motor SN40.60-DC38.57
right angle10 W...50 W24 V

DC gear-motor - SN40.60-DC38.57 - Powertronic Drive Systems GmbH - right angle / 10 W...50 W / 24 V
DC gear-motor - SN40.60-DC38.57 - Powertronic Drive Systems GmbH - right angle / 10 W...50 W / 24 V
Add to favorites
Compare this product


Characteristics

Motor type
DC
Shaft orientation
right angle
Power
10 W...50 W
Voltage
24 V, 12 V
Torque
1 - 5 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm
Product applications
industrial

Description

Additional information Rated Voltage VDC:12-24 Rated Power W:up to 15 Speed rpm:4,9-103 Gearmotor Gear Ratio:50;75;100;150;200;350;600;700;1050 12V Rated Torque (Ncm):20;30;40;60;80;100;200;200;200 Rated Speed (min1):103;68.5;;51.4;34.3;25.7;14.7;8.6;7.3;4.9 24 V Rated Torque (Ncm):27;40;54;81;100;100;200;200;200 Rated Speed (min1):103;68.5;51.4;34.3;25.7;14.7;8.6;7.3;4.9 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +60°C | Net Weight 450g Motor Rated Voltage (V):12;24 Rated Torque (Ncm):2;2.7 Rated Speed (min-1):5140;5140 Rated Current (mA):≤1600;≤1200 No Load Speed (min-1):6000;6000 No Load Current (mA):≤390;≤210 Rated Power (W):10.5;15 Options -Encoder -Rear Shaft -EMC Filter -Leads -Connector -Special Shaft -Special Voltage
