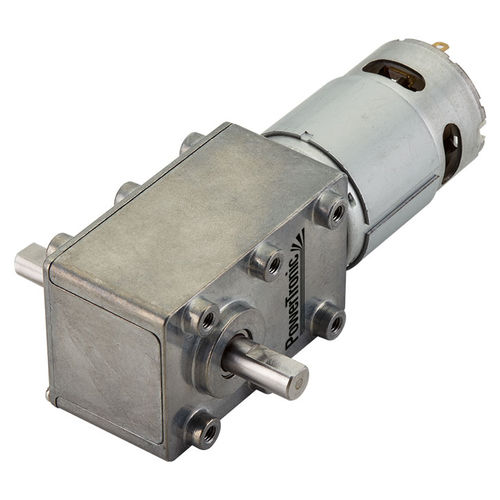

DC gear-motor SN50.80-DC45.66right angle10 W...50 W24 V
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Shaft orientation
- right angle
- Power
- 10 W...50 W
- Voltage
- 24 V, 12 V
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm
- Product applications
- industrial
Description
Additional information
Rated Voltage VDC:12-24
Rated Power W:up to 24,2
Speed rpm:3,7-77,8
Gearmotor
Gear Ratio:50;75;100;120;200;350;600;700;1050
12V
Rated Torque (Ncm):61;91;122;146;244;300;400;400;400
Rated Speed (min-1):77;51.3;38.5;32;19.3;11;6.4;5.5;3.7
24 V
Rated Torque (Ncm):56;84;112;134;224;300;400;400;400
Rated Speed (min-1):77.8;51.9;38.9;32.4;19.5;11.1;6.5;5.6;3.7
Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +60°C | Net Weight 850g
Motor
Rated Voltage (V):12;24
Rated Torque (Ncm):6.1;5.6
Rated Speed (min-1):3850;3890
Rated Current (mA):≤2800;≤1300
No Load Speed (min-1):4600;4600
No Load Current (mA):≤2800;≤1300
Rated Power (W):24.2;22.3
Options
-Encoder
-Rear Shaft
-EMC Filter
-Leads
-Connector
-Special Shaft
-Special Voltage
Catalogs
Product Catalogue DC | BLDC
128 Pages
