DC motor DC16.27 series
brushed12 VEMC

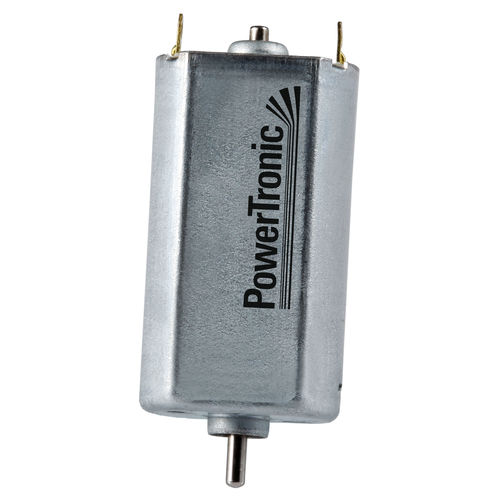

DC motor - DC16.27 series - Powertronic Drive Systems GmbH - brushed / 12 V / EMC
DC motor - DC16.27 series - Powertronic Drive Systems GmbH - brushed / 12 V / EMC
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushed
Voltage
12 V
Protection class
EMC
Power

0.1 W, 0.4 W, 0.5 W, 0.6 W
(0 hp, 0.001 hp, 0.001 hp, 0.001 hp)

Torque

0.0003 Nm, 0.0007 Nm
(0.0002 ft.lb, 0.0005 ft.lb)

Rotational speed

3,000 rpm, 5,544 rpm, 6,300 rpm, 8,500 rpm
(18,849.56 rad.min-1, 34,833.98 rad.min-1, 39,584.07 rad.min-1, 53,407.08 rad.min-1)

Diameter

15.5 mm
(0.61 in)

Description

Additional information Rated Voltage VDC:2,0-12,0 Rated Power W:0,1-0,6 Speed rpm:3.000-8.500 Technical Data Model:13130;11170;09250;06340 Rated Voltage(V):2.0;7.0;8.0;12.0 No Load Speed(min-1):3700;1033;7900;8000 No Load Current (A):0.038;0.046;0.027;0.028 Rated Speed(min-1):3000;8500;6300;5544 Rated Current(A):0.11;0.17;0.11;0.08 Rated Torque(Ncm):0.03;0.07;0.07;0.07 Rated Power(W):0.;0.6;0.5;0.4 Efficiency(%):42;51;51;42 Stall Current(A):0.45;0.80;0.42;0.42 Stall Torque(Ncm):0.17;0.46;0.35;0.26 Ambient Temp.: -10 to +60°C | Net Weight max. 18g Options -EMC Filter -Leads -Connector -Special Shaft -Special Voltage -Ball Bearing -Encoder
