Concrete block making machine Universal

automatic

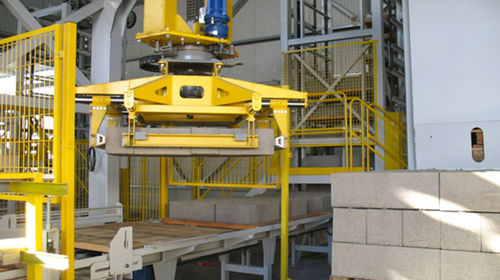

Stationary concrete products making machine model UNIVERSAL SPECIFICATIONS OF THE PRODUCT This concrete product machine is part of a full automatic line. After the production machine, there is one stacker (elevator), standard for 10 levels two pallets per level, from where the pallets are collected by an automatic finger car which transfers them to the curing chambers and back to a lowerator stacker when they are dried, and from here pallets go to an automatic cuber which packs the concrete products to leave them ready for delivery. There are different options for the removal of the packages with products out of the line according to the requirements of each project: Roller track conveyor. Slat conveyor. Railway wagon. Equipment to manufacture products with second layer (face mix) can be supplied with this machine in all its different options. Control panel with PLC and touch screen computer permitting to access all variables and save data related to production, warning messages of possible faults, information about number of products manufactured or palletized, running and down time, consumption of raw materials, …) and complete synoptic displaying operation and break downs information.
