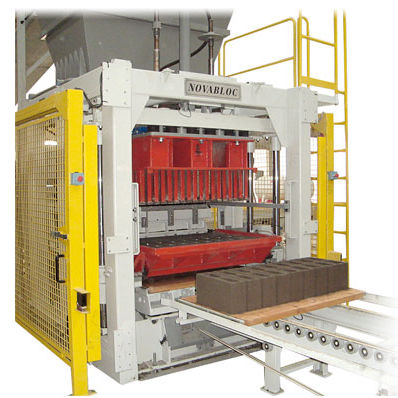

Concrete block making machine Novabloc

automatic

Stationary concrete products making machine model novabloc CONCRETE PRODUCT MACHINE This concrete product machine is part of a full automatic line. After the production machine, there is one stacker (elevator), standard for 10 levels two pallets per level, from where the pallets are collected by an automatic finger car which transfers them to the curing chambers and back to a lowerator stacker when they are dried, and from here pallets go to an automatic cuber which packs the concrete products to leave them ready for delivery. There are different options for the removal of the packages with products out of the line according to the requirements of each project: Roller track conveyor. Slat conveyor. Railway wagon. Equipment to manufacture products with second layer (face mix) can be supplied with this machine in all its different options. This machine works with a modular vibration system, an international patent of Poyatos. The modular vibration system consists of two vibrator shafts moving in a synchronised unidirectional way. Each one of the shafts has got two eccentric masses that, at full charge and speed, will balance out with each other, creating vibration or not whilst the motor keeps running continuously. This system offers the following advantages: Energy savings, due to non-stop/starting of the motor. Reduced cycle times (approx. reduction of 2 seconds per cycle). Instant stop of vibration prevents segregation of the materials. Reduced maintenance to all mechanical parts of the vibration system. Frequency converter, to automatically adjust operation parameters, between 2,400 - 4.000 RPM.
